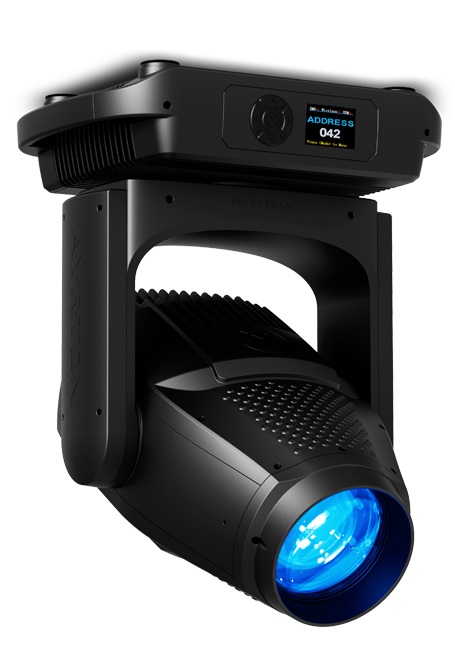

Ayrton Diablo-S 300W Profile

Case 2-way Case 4-way CMY DMX 5 pin LED LED CW Quick trigger clamp Shutter TRUE1 W-DMX

Product information

Diablo is a versatile, feature-rich 300 W profile luminaire based on the ultra-compact Mistral format.

Ayrton has taken on the ambitious challenge of making Diablo the smallest, lightest and most efficient luminaire of its category. With a record output of 19,000 lumens and a total weight of 21.8 kg, DIABLO is a powerhouse of technology that will tempt the most demanding lighting designers. To achieve its objective, Ayrton has miniaturised the framing system while maximizing the performance level. As in other profile luminaires of the product line, the framing section allows accurate positioning of its four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. A new ultra-compact high-output 550 W power supply feeds eight additional motors in the framing system, fitting into the original MISTRAL format. DIABLO borrows the same 13-element proprietary optical system delivering an 7.5:1 zoom ratio with a zoom range of 7° to 53°. The 119 mm frontal lens can produce an extremely uniform flat beam that can render images perfectly in all conditions and at any beam angle.

Details

Fixture: Diablo-S
Manufacture: Ayrton
Type: Profile
Source: 300W White LED 7000K
Colour mixing: CMY + CTO
Color temperature: 7000 K
Output: 19 000
Zoom: 7° to 53°
Gobo: 7 rotating glass gobos + Open
Gobo Size: Gobo: 25.5 mm Image: 20,0 mm
Special: Framing shutters, CMY, CTO, animation wheel, Iris, Frost, W-DMX
DMX: 5-pin In/Out
DMX Channels: 34 to 56
Wireless DMX: CRMX TiMo
Power connection: Shucko ->True1 In/Out
Power consumption: 550W
Battery: Display
IP-class: IP20
Weight: 21,8 kg
Colour: Black
